Vector Search

Vector search enables semantic similarity matching by converting unstructured data (text, images, audio) into high-dimensional vectors and finding similar items through mathematical distance calculations. Tacnode provides enterprise-grade vector search capabilities with PostgreSQL compatibility.

Quick Reference

Feature	Index Type	Best For	Memory	Build Speed	Query Speed
IVFFlat	Cluster-based	Large datasets (100K+)	Low	Fast	Moderate
HNSW	Graph-based	High accuracy needs	High	Slow	Fast
Quantization	int8/fp16	Memory optimization	50-75% less	-	Slight overhead

Query Methods:

Standard indexes: Use operators (<->, <#>, <=>)
Quantized indexes: Use functions (l2_distance(), inner_product(), cosine_distance())

Understanding Vector Search

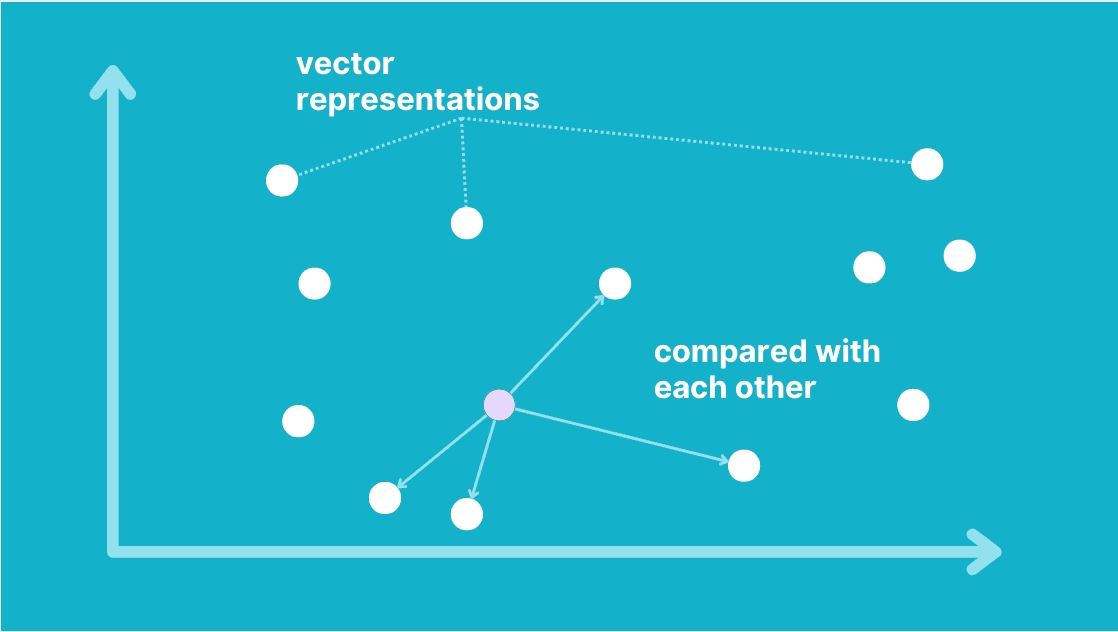

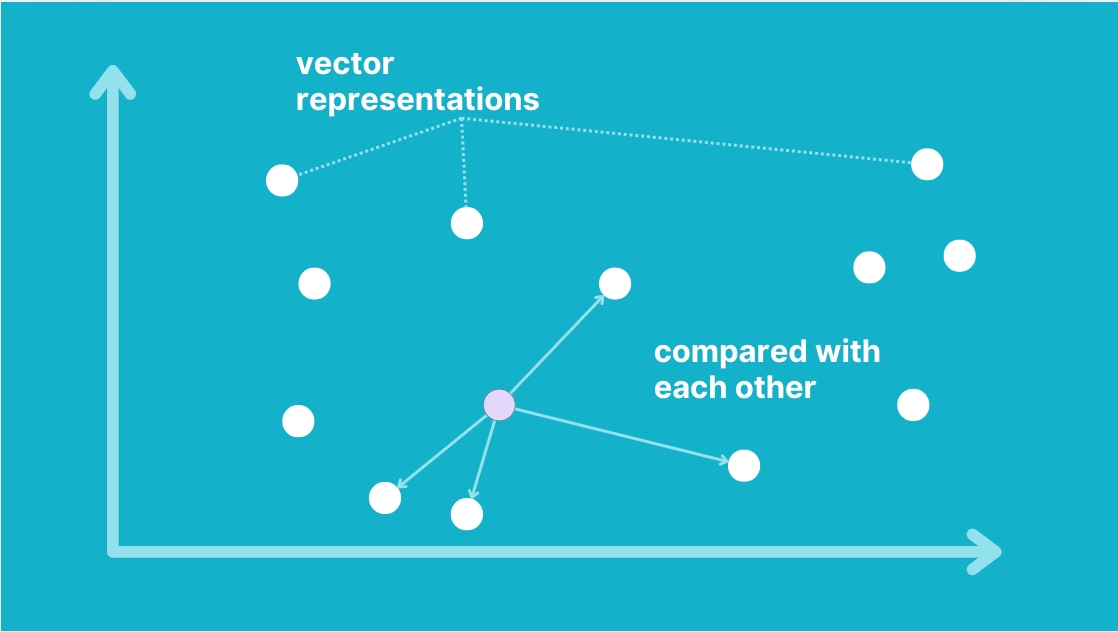

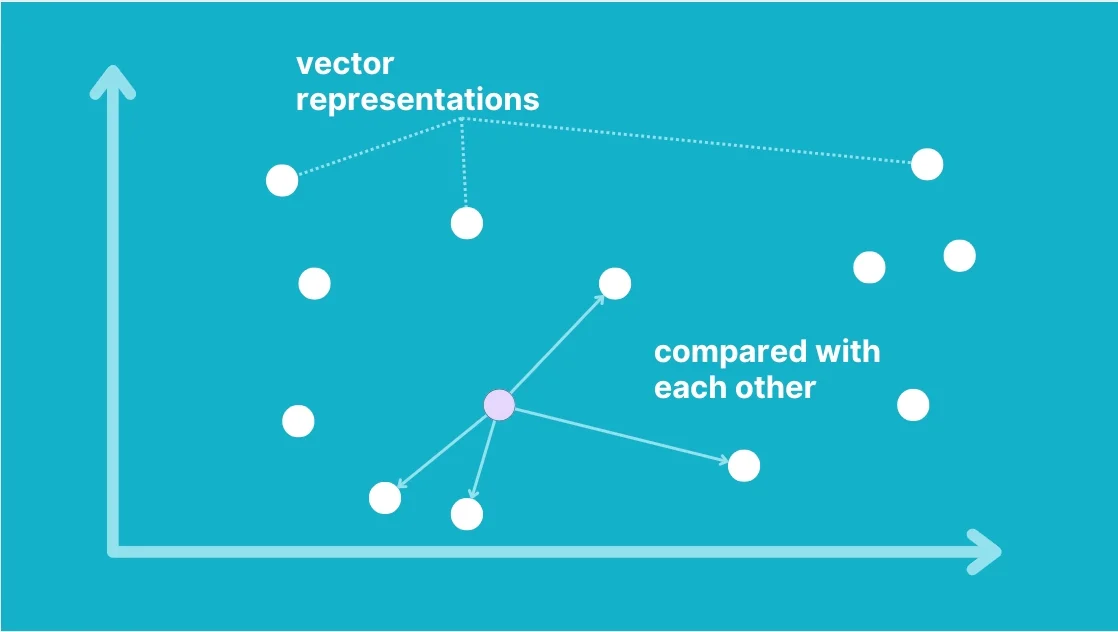

Artificial intelligence algorithms can convert various forms of unstructured data—such as speech, images, videos, language, text, and behaviors—into multi-dimensional vectors. These vectors act like coordinates in a mathematical space, representing different entities and their relationships.

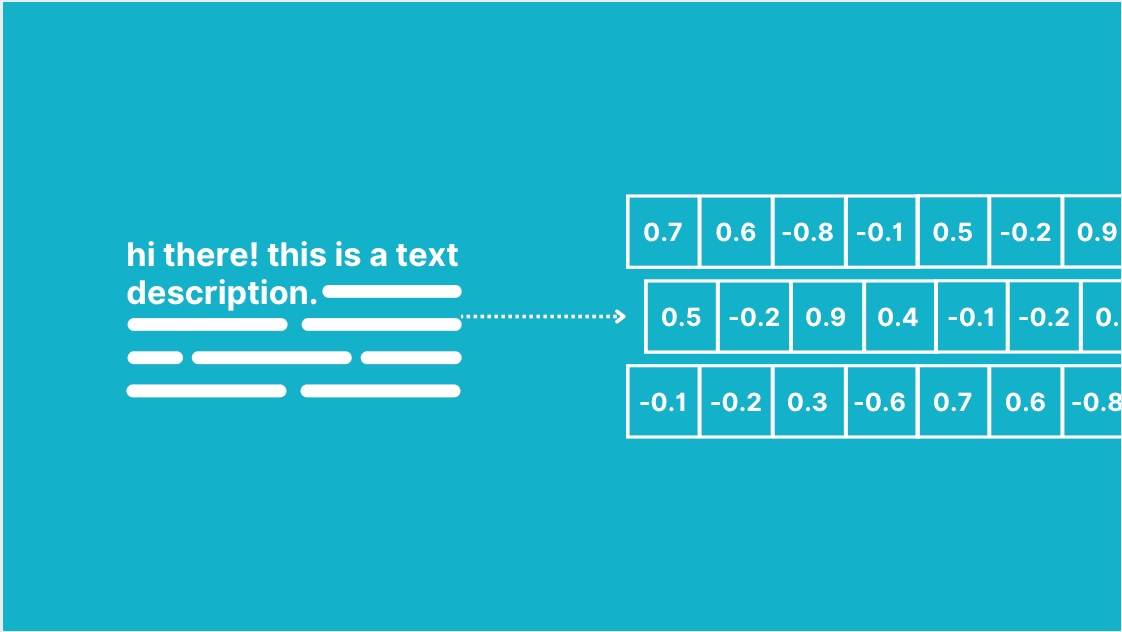

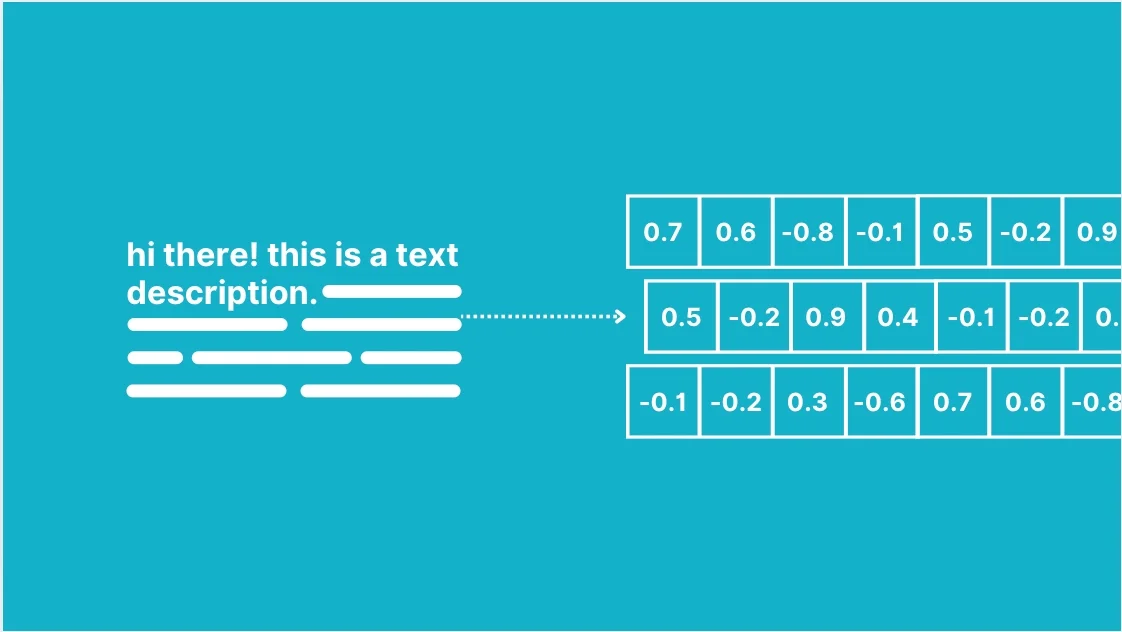

The process of transforming unstructured data into vectors is called Embedding, while retrieving these vectors to find the associated entities is known as unstructured retrieval.

From Data to Vectors

Vector embeddings transform unstructured data into numerical representations that capture semantic meaning:

-- Example: Text embeddings (conceptual)
'artificial intelligence' → [0.2, 0.8, -0.1, 0.5, ...]
'machine learning'       → [0.3, 0.7, -0.2, 0.6, ...]
'deep learning'          → [0.25, 0.75, -0.15, 0.55, ...]

Distance Metrics

Tacnode supports three distance calculations:

Operator	Distance Type	Use Case	Formula
`<->`	Euclidean (L2)	General similarity	√Σ(ai - bi)²
`<#>`	Inner Product	Recommendation systems	-Σ(ai × bi)
`<=>`	Cosine	Text/semantic search	1 - (A·B)/(‖A‖‖B‖)

Setting Up Vector Tables

Basic Table Structure

-- Create table with vector column
CREATE TABLE documents (
    id BIGSERIAL PRIMARY KEY,
    title TEXT,
    content TEXT,
    embedding VECTOR(1536),  -- 1536 dimensions (e.g., OpenAI embeddings)
    created_at TIMESTAMP DEFAULT NOW()
) USING COLUMNAR;

-- Sample data insertion
INSERT INTO documents (title, content, embedding) VALUES
('Introduction to AI', 'Artificial intelligence overview...', '[0.1, 0.2, 0.3, ...]'),
('Machine Learning Basics', 'ML fundamentals and concepts...', '[0.2, 0.1, 0.4, ...]'),
('Deep Learning Guide', 'Neural networks and deep learning...', '[0.15, 0.25, 0.35, ...]');

-- Table for different data types
CREATE TABLE media_items (
    id BIGSERIAL PRIMARY KEY,
    item_type TEXT,  -- 'text', 'image', 'audio'
    title TEXT,
    description TEXT,
    file_path TEXT,
    text_embedding VECTOR(768),    -- Text embeddings
    image_embedding VECTOR(512),   -- Image embeddings
    created_at TIMESTAMP DEFAULT NOW()
) USING COLUMNAR;

Index Types and Configuration

IVFFlat Index (Cluster-Based)

Best for large datasets with balanced performance and memory usage:

-- Calculate optimal lists parameter
-- Rule: lists = rows/1000 (&lt; 1M rows) or sqrt(rows) (&gt; 1M rows)

-- For 100K records: lists = 100
-- For 1M records: lists = 1000
-- For 10M records: lists = 3162

-- Create IVFFlat indexes for different distance metrics
CREATE INDEX docs_embedding_l2_idx
ON documents USING SPLIT_IVFFLAT (embedding vector_l2_ops)
WITH (lists = 1000);

CREATE INDEX docs_embedding_cosine_idx
ON documents USING SPLIT_IVFFLAT (embedding vector_cosine_ops)
WITH (lists = 1000);

CREATE INDEX docs_embedding_ip_idx
ON documents USING SPLIT_IVFFLAT (embedding vector_ip_ops)
WITH (lists = 1000);

HNSW Index (Graph-Based)

Best for high-accuracy requirements and fast queries:

-- Basic HNSW index
CREATE INDEX docs_embedding_hnsw_idx
ON documents USING SPLIT_HNSW (embedding vector_l2_ops)
WITH (m = 16, ef_construction = 64);

-- High-accuracy configuration (slower build, better recall)
CREATE INDEX docs_embedding_hnsw_accurate_idx
ON documents USING SPLIT_HNSW (embedding vector_cosine_ops)
WITH (m = 32, ef_construction = 128);

-- Memory-optimized with quantization
CREATE INDEX docs_embedding_hnsw_compact_idx
ON documents USING SPLIT_HNSW (embedding vector_l2_ops)
WITH (m = 16, ef_construction = 64, quantizer = 'fp16');

Quantization Options

Reduce memory usage with minimal accuracy loss:

-- fp16 quantization (50% memory reduction)
CREATE INDEX docs_fp16_idx
ON documents USING SPLIT_HNSW (embedding vector_l2_ops)
WITH (quantizer = 'fp16');

-- int8 quantization (75% memory reduction)
CREATE INDEX docs_int8_idx
ON documents USING SPLIT_HNSW (embedding vector_l2_ops)
WITH (quantizer = 'int8');

Performing Vector Searches

Basic Similarity Search

-- Find documents similar to a query vector
SELECT
    id,
    title,
    embedding <-> '[0.1, 0.2, 0.3, ...]' AS distance
FROM documents
ORDER BY embedding <-> '[0.1, 0.2, 0.3, ...]'
LIMIT 10;

-- Cosine similarity search
SELECT
    id,
    title,
    1 - (embedding <=> '[0.1, 0.2, 0.3, ...]') AS similarity
FROM documents
ORDER BY embedding <=> '[0.1, 0.2, 0.3, ...]'
LIMIT 10;

Search with Filtering

-- Vector search with metadata filtering
SELECT
    id,
    title,
    content,
    embedding <-> '[0.1, 0.2, 0.3, ...]' AS distance
FROM documents
WHERE created_at > '2024-01-01'
    AND title ILIKE '%machine learning%'
ORDER BY embedding <-> '[0.1, 0.2, 0.3, ...]'
LIMIT 5;

Multi-Vector Search

-- Search across different embedding types
SELECT
    id,
    title,
    LEAST(
        text_embedding <-> '[0.1, 0.2, ...]',
        image_embedding <-> '[0.3, 0.4, ...]'
    ) AS min_distance
FROM media_items
ORDER BY min_distance
LIMIT 10;

Query Optimization

IVFFlat Configuration

-- Configure probe count for IVFFlat searches
-- Higher probes = better recall, slower queries
-- Lower probes = faster queries, potentially missed results

-- Session-level setting
SET ivfflat.probes = 10;

-- System-wide setting
ALTER SYSTEM SET ivfflat.probes = 10;
SELECT pg_reload_conf();

-- Adaptive probing based on dataset size
-- Small dataset (&lt; 100K): probes = lists / 10
-- Medium dataset (100K-1M): probes = lists / 20
-- Large dataset (&gt; 1M): probes = lists / 50

HNSW Configuration

-- Configure search width for HNSW
-- Higher ef_search = better recall, higher latency
SET hnsw.ef_search = 100;

-- Performance vs accuracy trade-offs:
-- ef_search = 40:  Fast queries, moderate recall
-- ef_search = 100: Balanced performance
-- ef_search = 200: High recall, slower queries

Quantized Index Query Methods

When using quantized indexes (int8 or fp16), queries must use specialized functions instead of distance operators. This is because quantized vectors require specific distance calculation methods:

Quantized Index Distance Functions:

l2_distance(vector, vector) - Calculate Euclidean distance (L2 Distance)
inner_product(vector, vector) - Calculate inner product distance (Inner Product)
cosine_distance(vector, vector) - Calculate cosine distance (Cosine Distance)

Important: When using quantized indexes, you must use the corresponding functions for queries. The standard operators (<->, <#>, <=>) will not work with quantized indexes.

-- Configure search parameters for quantized HNSW indexes
SET hnsw.ef_search = 100;

-- Query using l2_distance for quantized indexes
SELECT
    id,
    title,
    l2_distance(embedding, '[3,1,2]') AS distance
FROM documents
ORDER BY l2_distance(embedding, '[3,1,2]')
LIMIT 5;

-- Query using inner_product for quantized indexes
SELECT
    id,
    title,
    inner_product(embedding, '[3,1,2]') AS ip_distance
FROM documents
ORDER BY inner_product(embedding, '[3,1,2]')
LIMIT 5;

-- Query using cosine_distance for quantized indexes
SELECT
    id,
    title,
    cosine_distance(embedding, '[3,1,2]') AS cosine_dist
FROM documents
ORDER BY cosine_distance(embedding, '[3,1,2]')
LIMIT 5;

Quantized vs Non-Quantized Query Comparison:

-- Non-quantized index queries (using operators)
SELECT * FROM documents
ORDER BY embedding <-> '[3,1,2]' LIMIT 5;  -- L2 distance

SELECT * FROM documents
ORDER BY embedding <#> '[3,1,2]' LIMIT 5;  -- Inner product

SELECT * FROM documents
ORDER BY embedding <=> '[3,1,2]' LIMIT 5;  -- Cosine distance

-- Quantized index queries (using functions)
SELECT * FROM documents
ORDER BY l2_distance(embedding, '[3,1,2]') LIMIT 5;  -- L2 distance

SELECT * FROM documents
ORDER BY inner_product(embedding, '[3,1,2]') LIMIT 5;  -- Inner product

SELECT * FROM documents
ORDER BY cosine_distance(embedding, '[3,1,2]') LIMIT 5;  -- Cosine distance

Performance Monitoring

-- Check index usage and performance
EXPLAIN (ANALYZE, BUFFERS)
SELECT id, title
FROM documents
ORDER BY embedding <-> '[0.1, 0.2, 0.3, ...]'
LIMIT 10;

-- Monitor index statistics
SELECT
    schemaname,
    tablename,
    indexname,
    idx_scan,
    idx_tup_read,
    idx_tup_fetch
FROM pg_stat_user_indexes
WHERE indexname LIKE '%embedding%';

Advanced Use Cases

Semantic Search Application

-- Complete semantic search with ranking
WITH query_vector AS (
    SELECT '[0.1, 0.2, 0.3, ...]'::vector AS qv
),
search_results AS (
    SELECT
        d.id,
        d.title,
        d.content,
        d.embedding <=> q.qv AS cosine_distance,
        1 - (d.embedding <=> q.qv) AS similarity_score
    FROM documents d, query_vector q
    WHERE d.embedding <=> q.qv < 0.5  -- Distance threshold
    ORDER BY d.embedding <=> q.qv
    LIMIT 20
)
SELECT
    title,
    SUBSTRING(content, 1, 200) || '...' AS snippet,
    ROUND(similarity_score::numeric, 3) AS score
FROM search_results
WHERE similarity_score > 0.7  -- Similarity threshold
ORDER BY similarity_score DESC;

Recommendation System

-- Find similar items for recommendation
CREATE OR REPLACE FUNCTION get_recommendations(
    user_item_id BIGINT,
    max_results INTEGER DEFAULT 10
) RETURNS TABLE(
    item_id BIGINT,
    title TEXT,
    similarity_score NUMERIC
) AS $$
BEGIN
    RETURN QUERY
    SELECT
        d.id,
        d.title,
        ROUND((1 - (d.embedding <=> ref.embedding))::numeric, 3)
    FROM documents d
    CROSS JOIN (
        SELECT embedding
        FROM documents
        WHERE id = user_item_id
    ) ref
    WHERE d.id != user_item_id
    ORDER BY d.embedding <=> ref.embedding
    LIMIT max_results;
END;
$$ LANGUAGE plpgsql;

-- Usage
SELECT * FROM get_recommendations(123, 5);

Hybrid Search (Vector + Text)

-- Combine vector similarity with text search
WITH vector_results AS (
    SELECT
        id,
        title,
        embedding <=> '[0.1, 0.2, ...]' AS vector_distance,
        ROW_NUMBER() OVER (ORDER BY embedding <=> '[0.1, 0.2, ...]') AS vector_rank
    FROM documents
    ORDER BY embedding <=> '[0.1, 0.2, ...]'
    LIMIT 50
),
text_results AS (
    SELECT
        id,
        title,
        ts_rank(to_tsvector('english', title || ' ' || content),
                plainto_tsquery('english', 'machine learning')) AS text_score,
        ROW_NUMBER() OVER (ORDER BY ts_rank(to_tsvector('english', title || ' ' || content),
                                          plainto_tsquery('english', 'machine learning')) DESC) AS text_rank
    FROM documents
    WHERE to_tsvector('english', title || ' ' || content) @@
          plainto_tsquery('english', 'machine learning')
    LIMIT 50
)
SELECT
    COALESCE(v.id, t.id) AS id,
    COALESCE(v.title, t.title) AS title,
    COALESCE(v.vector_distance, 1.0) AS vector_distance,
    COALESCE(t.text_score, 0.0) AS text_score,
    -- Hybrid score: combine vector and text relevance
    (0.7 * (1 - COALESCE(v.vector_distance, 1.0)) + 0.3 * COALESCE(t.text_score, 0.0)) AS hybrid_score
FROM vector_results v
FULL OUTER JOIN text_results t ON v.id = t.id
ORDER BY hybrid_score DESC
LIMIT 10;

Memory-Optimized Quantized Search

For memory-constrained environments, quantized indexes provide significant space savings:

-- Create memory-optimized table with quantized indexes
CREATE TABLE large_corpus (
    id BIGSERIAL PRIMARY KEY,
    document_text TEXT,
    embedding VECTOR(1536)
) USING COLUMNAR;

-- Create int8 quantized index (75% memory reduction)
CREATE INDEX large_corpus_int8_idx
ON large_corpus USING SPLIT_HNSW (embedding vector_l2_ops)
WITH (quantizer = 'int8', m = 16, ef_construction = 64);

-- Create fp16 quantized index (50% memory reduction)
CREATE INDEX large_corpus_fp16_idx
ON large_corpus USING SPLIT_HNSW (embedding vector_cosine_ops)
WITH (quantizer = 'fp16', m = 16, ef_construction = 64);

-- Query using quantized index functions
WITH query_embedding AS (
    SELECT '[0.1, 0.2, 0.3, ...]'::vector AS qe
),
quantized_results AS (
    SELECT
        id,
        document_text,
        l2_distance(embedding, q.qe) AS l2_dist,
        cosine_distance(embedding, q.qe) AS cosine_dist,
        -- Combine different distance metrics for better ranking
        (l2_distance(embedding, q.qe) * 0.6 + cosine_distance(embedding, q.qe) * 0.4) AS combined_score
    FROM large_corpus lc, query_embedding q
    ORDER BY combined_score
    LIMIT 20
)
SELECT
    id,
    LEFT(document_text, 100) || '...' AS snippet,
    ROUND(l2_dist::numeric, 4) AS l2_distance,
    ROUND(cosine_dist::numeric, 4) AS cosine_distance,
    ROUND(combined_score::numeric, 4) AS final_score
FROM quantized_results
ORDER BY final_score;

Best Practices

Index Selection Guidelines

IVFFlat Index - Cluster-Based:

Best for: Large datasets (> 100K vectors), memory-constrained environments
Lists parameter:
- < 1M rows: lists = rows/1000
- > 1M rows: lists = sqrt(rows)
Probes tuning: Start with lists/20, adjust based on performance needs
Trade-offs: Lower memory usage, faster build time, moderate query performance

HNSW Index - Graph-Based:

Best for: High accuracy requirements, fast query performance (< 10M vectors)
Parameters:
- m: 16 (balanced), 32 (high accuracy), 8 (fast build)
- ef_construction: 64 (default), 128+ (better quality)
Trade-offs: Higher memory usage, slower build time, excellent query performance

Memory Optimization Strategies:

Vector Quantization: Use fp16 (50% reduction) or int8 (75% reduction)
Dimension Reduction: Reduce vector dimensions if possible during embedding
Index Type Selection: Use IVFFlat for very large datasets (> 10M vectors)
Data Archiving: Implement vector archiving for historical data
Batch Operations: Process embeddings in batches to reduce memory peaks

Quantization Selection Guide:

Quantization Type	Memory Reduction	Precision Loss	Query Method	Best For
None (float32)	0%	None	Operators (`<->`, `<#>`, `<=>`)	High precision needs
fp16	50%	Minimal	Functions (`l2_distance()`, etc.)	Balanced memory/precision
int8	75%	Moderate	Functions (`l2_distance()`, etc.)	Memory-constrained environments

-- Example: Choosing quantization based on requirements

-- High precision scenario (no quantization)
CREATE INDEX high_precision_idx
ON documents USING SPLIT_HNSW (embedding vector_l2_ops)
WITH (m = 32, ef_construction = 128);

-- Query with operators
SELECT * FROM documents
ORDER BY embedding <-> '[0.1, 0.2, ...]' LIMIT 10;

-- Balanced scenario (fp16 quantization)
CREATE INDEX balanced_idx
ON documents USING SPLIT_HNSW (embedding vector_l2_ops)
WITH (quantizer = 'fp16', m = 16, ef_construction = 64);

-- Query with functions
SELECT * FROM documents
ORDER BY l2_distance(embedding, '[0.1, 0.2, ...]') LIMIT 10;

-- Memory-constrained scenario (int8 quantization)
CREATE INDEX memory_optimized_idx
ON documents USING SPLIT_HNSW (embedding vector_l2_ops)
WITH (quantizer = 'int8', m = 16, ef_construction = 64);

-- Query with functions
SELECT * FROM documents
ORDER BY l2_distance(embedding, '[0.1, 0.2, ...]') LIMIT 10;

Production Deployment Tips

Index Building: Build indexes during low-traffic periods
Monitoring: Track query performance and recall metrics
Scaling: Use read replicas for query load distribution
Backup: Include vector indexes in backup strategy
Updates: Consider rebuild vs. incremental updates for large changes

Common Pitfalls to Avoid

Wrong distance metric: Match metric to your embedding model
Inappropriate index params: Test different configurations
Missing normalization: Ensure vectors are properly normalized
Ignoring data distribution: Consider vector clustering patterns
Over-indexing: Don't create unnecessary indexes
Quantized index query errors: Use functions (l2_distance(), inner_product(), cosine_distance()) instead of operators (<->, <#>, <=>) for quantized indexes

Critical Error Example:

-- ❌ WRONG: Using operators with quantized indexes
CREATE INDEX quantized_idx ON docs USING SPLIT_HNSW (embedding vector_l2_ops)
WITH (quantizer = 'int8');

-- This will NOT work correctly
SELECT * FROM docs ORDER BY embedding <-> '[1,2,3]' LIMIT 5;

-- ✅ CORRECT: Using functions with quantized indexes
SELECT * FROM docs ORDER BY l2_distance(embedding, '[1,2,3]') LIMIT 5;

This comprehensive guide covers all aspects of vector search in Tacnode, from basic setup to advanced hybrid search implementations.

Vector Search

On this page
